Clear labeling on breaker panels keeps electrical systems organized and safe. It helps anyone working on the system know exactly which breaker controls each circuit. Professional labeling uses consistent names, durable materials, and clear layouts that meet electrical standards.
When electricians follow best practices, they save time during maintenance and reduce the chance of mistakes. Each label should be easy to read, placed neatly, and made to last in different environments. Proper labeling also shows attention to detail and professionalism in every project.
Key Takeaways
- Clear and consistent labeling improves safety and efficiency.
- Professional labeling follows standards and uses durable materials.
- Organized panels reflect quality workmanship and reliability.

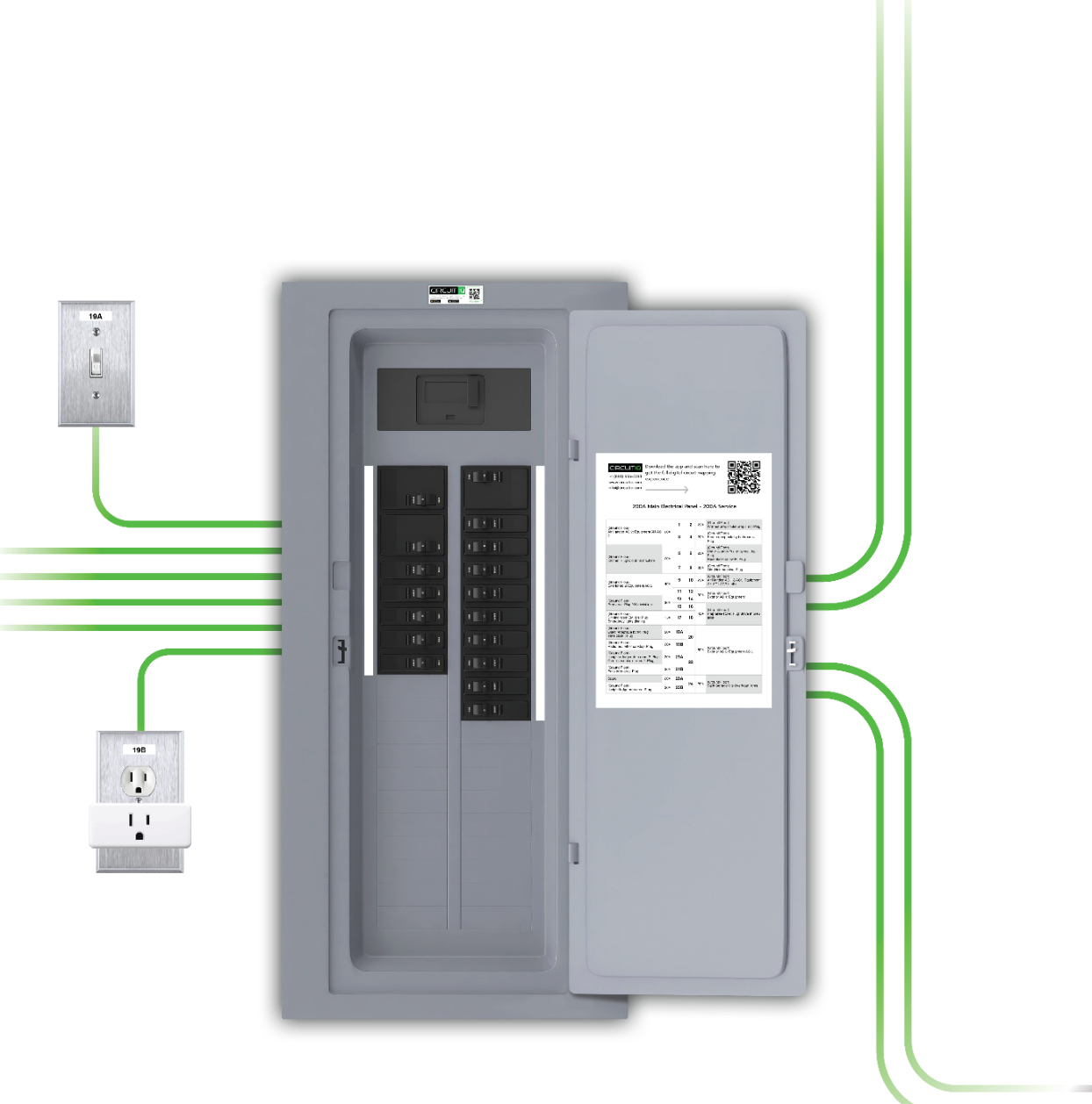

How to Label Breaker Panels Professionally
Professional breaker labeling ensures safety, efficiency, and compliance with electrical codes. Clear, durable labels help electricians and property owners identify circuits quickly, prevent hazards, and maintain accurate electrical records.
Step-by-Step Labeling Process
They should first turn off the main breaker to eliminate the risk of shock. Using a non-contact voltage tester confirms the panel is safe to handle. Each circuit is then mapped by turning lights or devices on and off to match breakers with their connected areas.
Once circuits are identified, they record details on a panel schedule sheet. Labels should include the room name, load type, and amperage rating. For example, “Kitchen Outlets – 20A GFCI.”
They should apply labels in a consistent order, starting from the top left breaker. After labeling, each circuit must be tested again to confirm accuracy. A photo of the completed panel provides a record for maintenance. For detailed guidance, see this step-by-step labeling guide.
Tools and Materials Needed
Essential tools include a label maker, adhesive vinyl labels, and a panel schedule sheet. Adhesive vinyl or laminated labels last longer and resist fading, as noted in the complete guide to electrical panel labeling.
They also need a pen or permanent marker for quick notes, a flashlight for visibility, and a cleaning cloth to prepare surfaces before applying labels. A voltage tester ensures safety during identification.
Professionals may use digital label makers for consistent text and neat formatting. These devices allow adjustable font sizes and durable print quality. Organizing tools and materials before starting helps maintain accuracy and efficiency throughout the labeling process.
Common Labeling Mistakes to Avoid
Many labeling errors come from vague or incomplete descriptions. Labels such as “Misc” or “Spare” create confusion and may violate code requirements. Each label must clearly describe the circuit’s purpose and location.
Another mistake is failing to update labels after renovations or wiring changes. Outdated information can delay troubleshooting and pose safety risks.
They should also avoid temporary materials that peel or fade. Using consistent formatting and spacing improves readability. According to the electrical panel labeling standards guide, durable, legible markings are essential for compliance and long-term reliability.
Breaker Labeling Best Practices
Accurate breaker labeling improves safety, speeds up troubleshooting, and supports compliance with electrical codes. Electricians achieve this by using clear language, durable materials, and up-to-date circuit schedules that reflect real conditions in the field.
Clear and Consistent Labeling
Clear labeling reduces confusion and helps anyone working on the system identify circuits quickly. Each label should describe the connected equipment or area, such as “Kitchen Lights” or “A/C Unit.” Avoid vague terms like “Outlet” or “Misc.”
Electricians often use standard abbreviations such as A/C for air conditioner, WH for water heater, and GFCI for ground fault circuit interrupter, as shown in the electrical panel labeling guide. Consistency across all panels prevents misinterpretation during maintenance or emergencies.
Printed, machine-made labels are preferred over handwritten ones because they are easier to read and look professional. Labels should be centered, aligned, and placed directly beside or above each breaker switch.
Using Durable and Legible Labels
Labels must remain legible for years despite heat, dust, or moisture. High-quality materials such as polyester or engraved plastic resist fading and peeling. According to DuraLabel’s electrical labeling standards, permanent adhesive and UV-resistant print help maintain readability in harsh environments.
Text size and color contrast matter. Black text on a white or yellow background offers the best visibility. In industrial settings, color coding can help identify voltage levels or hazard types.
Electricians should avoid paper or low-grade vinyl labels, which often degrade over time. Choosing durable label stock not only ensures compliance with NEC and OSHA rules but also reduces the need for frequent replacements.
Maintaining Accurate Panel Schedules
A panel schedule lists each breaker and the equipment or area it controls. Keeping this document accurate is essential for inspections and maintenance. Every time a circuit changes, the schedule should be updated immediately.
Professionals often create both printed and digital copies for easy access. The Dunman Electric guide notes that testing each circuit before labeling prevents errors and ensures complete documentation.
A simple table format works well:
| Breaker No. | Circuit Description | Location |
|---|---|---|
| 1 | Kitchen Lights | Main Floor |
| 2 | Water Heater | Utility Room |
Regular reviews keep the panel schedule reliable and compliant with code requirements.
Electrical Labeling Standards for Electricians
Accurate electrical labeling ensures safety, code compliance, and efficient maintenance. Electricians rely on standardized practices and regulations to mark panels, breakers, and circuits clearly so anyone working on the system can identify components without confusion.
National Electrical Code (NEC) Requirements
The National Electrical Code (NEC) sets the foundation for labeling electrical panels and circuits. Article 110.22 requires that all disconnecting means be clearly labeled to indicate their purpose. Labels must be durable, legible, and permanent, even under normal environmental conditions.
Electricians must mark each circuit breaker with its function, such as “Kitchen Lights” or “HVAC Unit.” This helps technicians isolate circuits safely during repairs or emergencies. The NEC also mandates that service disconnects be labeled to prevent accidental energizing.
Panels should use contrasting colors and non-conductive materials for label plates or adhesive tags. When labeling multiple panels in large buildings, electricians often create panel schedules that match the physical labels to circuit directories. These schedules must remain updated whenever circuits change.
Clear NEC-compliant labeling reduces downtime and prevents electrical hazards. For more detailed guidance on labeling standards and compliance, electricians can review the Electrical Panel Labeling Standards guide.
Industry-Recognized Labeling Conventions
Beyond the NEC, electricians follow consistent labeling conventions used across the industry. Labels should include panel identification, voltage rating, and circuit destination. Using uniform abbreviations and fonts improves readability and speeds up troubleshooting.
Many professionals use engraved plastic tags or thermal-printed adhesive labels rated for high temperatures and moisture. These materials resist fading and peeling, ensuring long-term clarity.
A simple example of a clear label layout:
| Component | Label Example | Description |
|---|---|---|
| Breaker | BR-12 | Breaker number 12 |
| Circuit | LGT-2 | Lighting circuit 2 |
| Voltage | 120V | Circuit voltage rating |
Following established conventions helps electricians maintain consistency across projects. More tips on professional labeling practices can be found in this step-by-step guide to mastering electrical panel labeling.
Safety and Compliance Considerations
Proper labeling is essential for OSHA and NFPA 70E compliance. Labels must communicate hazards such as arc flash risk, voltage level, and required personal protective equipment (PPE). Clear warnings reduce the chance of injury during maintenance or inspection.
Electricians should use ANSI Z535-compliant safety labels with standardized signal words like Warning, Caution, or Danger. These labels often include pictograms to make hazards visible at a glance.
In industrial settings, arc flash labels are mandatory and must show the incident energy level and approach boundaries. Electricians can reference the Electrical Labeling Standards for OSHA Compliance for detailed requirements.
Keeping labels accurate and up to date ensures both legal compliance and workplace safety.
Frequently Asked Questions
Accurate labeling improves safety, efficiency, and maintenance in electrical systems. Professional labels follow clear standards, use durable materials, and include precise information for each circuit.
What are the industry standards for labeling electrical breaker panels?
Electricians follow the National Electrical Code (NEC) and NFPA 70 guidelines. These standards require clear identification of each circuit’s purpose and location. Labels must be legible, permanent, and placed near the corresponding breaker.
How can one ensure clarity and professionalism when labeling breaker panels?
Use consistent formatting, clear fonts, and proper spacing. Avoid abbreviations that could cause confusion. Each label should be easy to read under normal lighting and printed using professional labeling tools.
What materials are recommended for creating durable and long-lasting labels on breaker panels?
Vinyl or polyester labels with strong adhesive backing work best. These materials resist heat, moisture, and fading. Thermal transfer or laser-printed labels last longer than handwritten ones.
Could you outline the best practices for organizing circuit labels on a breaker panel?
Arrange labels in the same order as the breakers. Group circuits by function or location, such as lighting, outlets, or HVAC. Keep the layout neat and consistent to make identification quick and accurate.
What information is essential to include on each label for a breaker panel to comply with safety regulations?
Each label should list the circuit number, area served, and equipment or appliance connected. When applicable, include voltage or amperage details. The information must match the panel schedule and be easy to verify.
How often should breaker panel labeling be reviewed and updated to maintain professional standards?
Labels should be checked during routine inspections or after any electrical changes. Updating labels ensures accuracy when circuits are added, removed, or modified. Regular reviews help maintain compliance and prevent confusion during maintenance.
