Knowing which outlets share the same circuit helps prevent overloads and keeps electrical devices running safely. Many people assume outlets in the same room are on one circuit, but that’s not always true. The easiest way to tell which outlets are on the same circuit is to turn off a breaker and see which outlets lose power. This simple test can save time and prevent tripped breakers or damaged equipment.
They can also use a circuit breaker finder tool to trace outlets without cutting power. This device sends a signal through the wiring, helping identify which outlets connect to the same breaker. It’s a quick way to map circuits accurately, especially in homes or apartments with unclear wiring layouts.
Understanding how circuits connect gives anyone more control over their electrical setup. It helps plan safe use of power strips, appliances, and PowerLine adapters that rely on shared circuits. With a few simple checks, anyone can manage their electrical system more confidently.
Key Takeaways
- Turning off breakers helps identify which outlets share a circuit
- Circuit finder tools make tracing outlets faster and safer
- Knowing circuit connections prevents overloads and improves safety
Understanding Circuits and Outlet Connections
Electrical circuits distribute power through a network of wires, outlets, and breakers. Each circuit carries a limited amount of current, and knowing how outlets connect helps prevent overloads and identify electrical issues safely.
What It Means for Outlets to Be on the Same Circuit
When outlets share the same circuit, they draw power from one breaker in the electrical panel. Turning off that breaker cuts power to all outlets on that line. This setup allows multiple outlets to share wiring and protection.
Homes often group outlets by room or function. For example, all outlets in a living room may share one circuit, while kitchen appliances use separate ones. Outlets on the same circuit will lose power together when the breaker is switched off.
Testing can confirm this connection. A person can use an outlet tester or plug in a small lamp, then flip breakers until the light turns off. This method helps identify which outlets belong to the same circuit, as explained in this guide on determining outlet circuits.
Key Components of a Circuit
A basic circuit includes several key parts:
- Breaker: Protects the circuit by shutting off power if current exceeds safe limits.
- Wiring: Carries electricity from the panel to outlets and switches.
- Outlets: Provide access points for plugging in devices.
Each component must work together to maintain safety and efficiency. The breaker connects to hot, neutral, and ground wires, which complete the path for electrical flow. If one part fails, the entire circuit can stop working or become unsafe.
Properly labeling breakers helps track which outlets and rooms they control. Electrical experts recommend mapping circuits and keeping notes inside the breaker box for easy reference.
Types of Electrical Circuits in Homes
Homes use several circuit types based on power needs. General-purpose circuits supply outlets and lights in living areas. Dedicated circuits handle high-demand appliances such as refrigerators or dryers. These circuits prevent overloads by isolating heavy loads from shared lines.
Some circuits use 15-amp breakers, while others use 20-amp for larger areas or equipment. Outlets on the same circuit share that breaker’s capacity. Understanding these types helps homeowners plan safe power use, as explained in this overview of outlet circuits.
Identifying Outlets on the Same Circuit: Step-by-Step Methods
Determining which outlets share the same circuit helps prevent overloads and improves electrical safety. The process involves tracing connections through the breaker panel, testing outlets, using plug-in devices, and labeling each circuit accurately for future reference.
Using the Breaker Panel to Trace Circuits
The breaker panel, also called the electrical panel or breaker box, contains all the circuit breakers that control different areas of a home. Each switch represents one circuit.
To start, open the panel door and look for any existing labels. If none exist, turn off one breaker at a time. Observe which rooms or outlets lose power. This identifies the area served by that breaker.
It helps to have two people—one operating the panel and another checking outlets or lights. Record each result on a chart. For example:
| Breaker Number | Room/Area Controlled | Notes |
|---|---|---|
| 1 | Kitchen outlets | Includes refrigerator |
| 2 | Living room lights | South wall only |
Detailed labeling inside the panel cover makes future troubleshooting faster and safer.
Testing Outlets by Flipping Circuit Breakers
Testing outlets manually is a reliable way to map circuits. Begin by turning on a small lamp or outlet tester in each room. Then, at the breaker box, switch off one breaker.
When the lamp or tester goes dark, that outlet is on the same circuit as the breaker turned off. Repeat this process for each breaker until every outlet is identified.
This method, described in detail at DIY Stack Exchange, works best with two people. One person flips breakers while the other notes which outlets lose power. Always restore each breaker to its original position before moving on.
Plug-In Circuit Analyzers and Other Tools

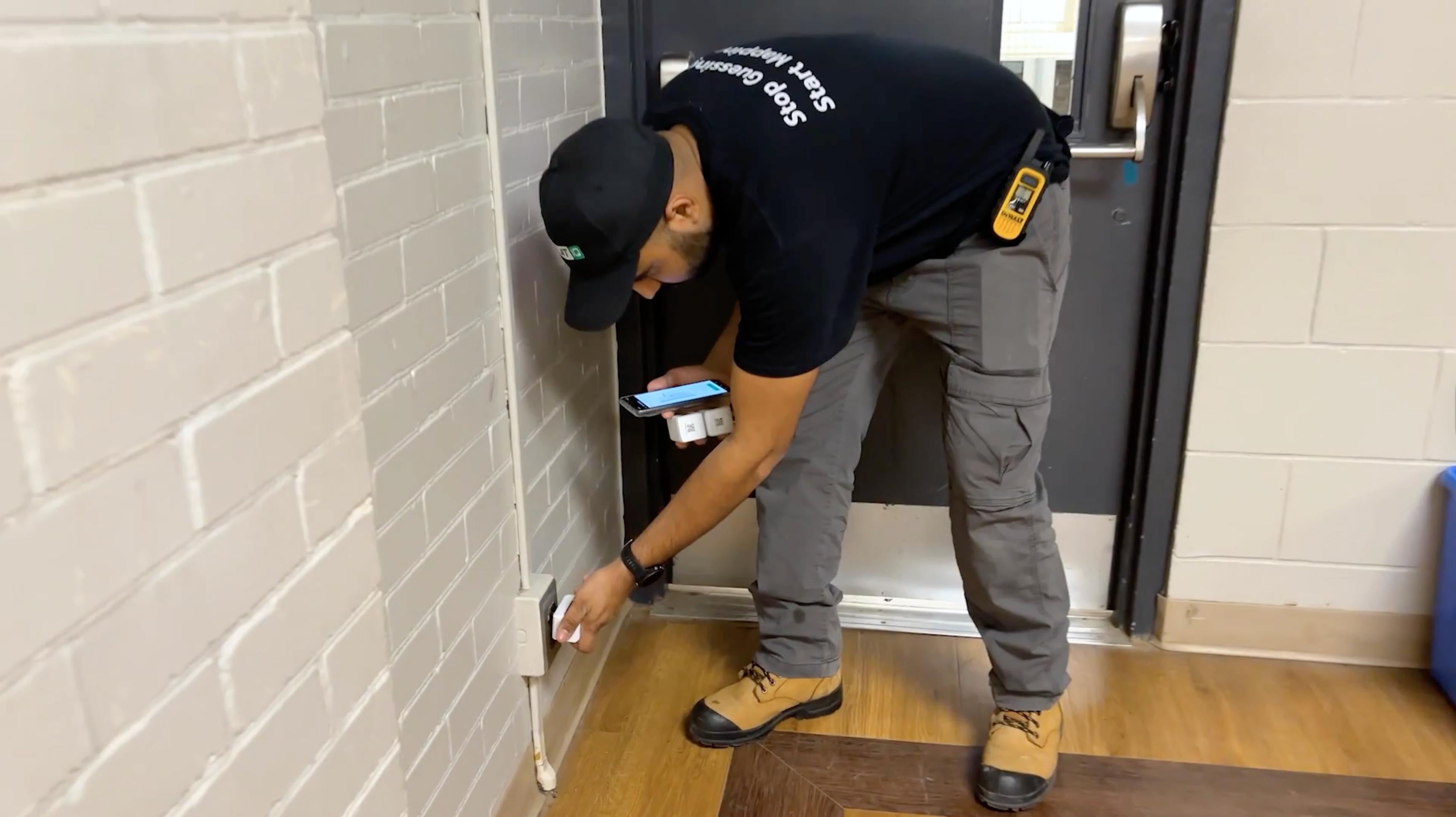

A plug-in circuit analyzer or circuit finder can make the process faster and more precise. These devices include a transmitter that plugs into an outlet and a handheld receiver that detects the matching circuit at the panel.
By scanning the breakers, the receiver beeps or lights up when it finds the correct circuit. This allows users to identify connections without turning breakers on and off repeatedly.
Tools like these, as explained in The Silicon Underground guide, are especially helpful in large homes or offices. They reduce guesswork and help confirm which outlets share the same wiring path.
Visual Inspection and Labeling Practices
After identifying the circuits, proper labeling ensures clarity for future maintenance. Use a permanent marker or printed labels to mark each breaker with the rooms or outlets it controls.
Inspect the electrical panel for any exposed or missing covers. Do not touch wiring or terminals inside the box. Only the breaker switches should be visible and accessible.
Clear, consistent labeling—such as “Breaker 5: Bedroom Outlets”—prevents confusion and saves time during repairs. As recommended in Fluke’s guide on labeling circuits, verifying each label through testing ensures long-term accuracy and safety.
Special Considerations for Dedicated and Shared Circuits
Some outlets provide power to only one appliance, while others share electricity across several rooms. Knowing which type you have helps prevent overloads, protect appliances, and maintain safe electrical wiring.
Recognizing Dedicated Circuits for Appliances
A dedicated circuit connects a single appliance directly to the circuit breaker. This setup ensures that heavy-duty devices like refrigerators, washing machines, or microwaves get consistent power without interference. Each breaker switch in the panel should clearly label these circuits.
Homeowners can check by turning off one breaker at a time. If only one outlet or appliance loses power, that line is likely dedicated. According to Accredited Electric, large appliances that draw high current should always have their own breaker to avoid tripping other circuits.
Dedicated circuits also meet code requirements for safety. The National Electrical Code (NEC) specifies that certain fixed appliances must have their own line to prevent overheating or wire damage. This design keeps voltage stable and reduces the risk of fire.
Implications of Shared Circuits in Different Rooms
A shared circuit powers multiple outlets or lights in one or more areas. This is common in bedrooms, living rooms, and hallways. When too many devices run at once, the circuit can overload and trip the breaker.
Testing helps identify shared lines. Turning off a breaker and checking which outlets lose power shows which ones are on the same circuit. The Electronics Stack Exchange community notes that this simple breaker test is a reliable way to map shared circuits.
In older homes, shared lines may cross between rooms. For instance, outlets in a living room might share a circuit with hallway lighting. This can cause dimming or breaker trips when multiple high-wattage devices operate together.
Safety Tips When Investigating Circuits
Before testing outlets or breakers, turn off power to the area being checked. Always use a non-contact voltage tester to confirm that power is off before touching wiring.
Labeling breakers after testing helps avoid confusion later. Parker and Sons recommend marking each switch with the rooms or outlets it controls.
Avoid plugging heavy appliances into shared circuits. If lights flicker or breakers trip often, an electrician should inspect the electrical wiring for possible overloads or damaged connections. These steps help maintain a safe and organized electrical system.
Troubleshooting and When to Call an Electrician
Electrical circuits can fail for many reasons, including loose wiring, tripped breakers, or overloaded connections. Identifying the cause early helps prevent safety hazards and costly repairs while keeping the home’s electrical system reliable.
Common Issues When Outlets Share a Circuit
When several outlets share one circuit, problems often appear as flickering lights, devices losing power, or breakers tripping. These issues occur because multiple appliances draw electricity from the same line.
A tripped circuit breaker in the breaker box usually indicates that the circuit has reached its limit. Resetting the breaker may restore power, but repeated trips suggest an underlying problem.
Loose wiring or worn outlets can also interrupt power flow. Inspecting for warm outlet covers, scorch marks, or buzzing sounds can reveal early warning signs.
If half the outlets in a room stop working while others remain active, the circuit may be half-hot or controlled by a wall switch, as explained in Bob Vila’s guide to outlet problems. Testing outlets with a small lamp or phone charger can help confirm which are connected.
Signs of Overloaded Circuits
An overloaded circuit happens when too many devices use more power than the circuit can handle. Common signs include:
| Indicator | What It Means |
|---|---|
| Frequent breaker trips | The circuit draws more current than rated |
| Dimming or flickering lights | Voltage drops due to high demand |
| Warm or discolored outlets | Excess heat from overuse |
Appliances like space heaters, microwaves, or hair dryers often cause overloads when used on the same circuit. Unplugging unused devices can reduce strain.
If the breaker trips immediately after resetting, there may be a short circuit or damaged wiring. In that case, the breaker should remain off until inspected by a professional.
When Professional Help Is Needed
Calling an electrician is essential when outlets spark, emit a burning smell, or feel hot to the touch. These symptoms can indicate faulty wiring or internal damage that poses a fire risk, according to Ottawa Electric.
Electricians use specialized testers to identify hidden faults behind walls or inside the breaker box. They can also verify that circuits meet current electrical codes and replace worn components safely.
Homeowners should seek help if they notice frequent breaker trips, flickering lights, or unexplained power loss across multiple outlets. These are signs of broader electrical issues that require professional evaluation.
Frequently Asked Questions
Testing outlets for shared circuits helps prevent overloads and improves home safety. Using tools like circuit tracers, voltage testers, and breaker finders allows for accurate identification of which outlets share the same electrical path.
What are the signs that electrical outlets are connected to the same circuit?
If two outlets lose power when one breaker is turned off, they share the same circuit. Lights dimming or devices resetting together can also suggest a shared connection. In most homes, rooms often have several outlets on one circuit.
Can you identify a shared circuit by examining the circuit breaker panel?
Yes. The circuit breaker panel lists which breakers control specific areas. Each switch, or breaker, powers a separate circuit. Labels may show which rooms or outlets they serve, but testing is needed to confirm accuracy. Detailed steps for mapping circuits are described here.
What is the best method for tracing the circuit path of electrical outlets?
The most reliable method is to turn off one breaker at a time and check which outlets lose power. This process identifies the exact outlets connected to that breaker. A helper can make the process faster by checking outlets while another person flips breakers.
Are there tools available to determine if multiple outlets are on the same circuit?
Yes. A circuit tracer device can detect which outlets share a circuit. A transmitter plugs into one outlet and sends a signal that a receiver can trace to other outlets on the same line. Non-contact voltage testers and outlet testers also help confirm live circuits.
How does flipping breakers help in identifying outlets on the same circuit?
Flipping breakers one by one allows a person to see which outlets lose power. This method is simple and effective for mapping circuits without special tools. Notes should be made for each breaker to keep a clear record of which outlets it controls.
What safety precautions should be taken when testing outlets for common circuits?
Always turn off power before removing outlet covers or touching wiring. Avoid testing outlets with wet hands or in damp areas. If wiring appears damaged or confusing, it’s safest to stop and contact a licensed electrician.
