A well-organized electrical panel labeling system saves time, prevents confusion, and keeps electrical work compliant with safety codes. Clear, consistent labels let technicians identify circuits instantly, improving workflow and reducing downtime during maintenance or emergencies. When each breaker and circuit is marked accurately, troubleshooting becomes faster and safer.
Modern labeling systems go beyond handwritten notes. They use durable materials and standardized formats to ensure accuracy and longevity. Professionals rely on tools like digital label makers and adhesive vinyl labels to maintain clarity and meet code requirements. A structured labeling approach also supports better documentation, helping teams manage upgrades and repairs efficiently.
By adopting proven labeling methods, electrical teams can streamline operations, minimize errors, and maintain compliance. Investing in a proper system enhances safety, organization, and long-term reliability across any electrical project.
Key Takeaways
- Proper labeling improves safety, accuracy, and code compliance
- Durable, standardized labels simplify maintenance and upgrades
- Organized systems reduce downtime and streamline electrical workflows
Core Principles of Electrical Panel Labeling Systems
Electrical panel labeling improves safety, reduces downtime, and ensures compliance with electrical codes. Clear, consistent labels help technicians identify circuits quickly, prevent errors, and maintain reliable electrical systems.
Purpose and Benefits of Panel Labeling
Panel labeling provides a structured way to identify each circuit, breaker, and component within an electrical system. It improves safety by reducing the chance of accidental contact with live circuits.
Accurate labeling also supports faster maintenance and troubleshooting. When workers can read and understand labels easily, they can isolate faults or perform repairs without confusion or delay.
Compliance is another core benefit. Standards such as NEC Articles 110.22(A) and 408.4(A) require clear identification of disconnecting means and circuit functions. Following these rules helps avoid fines and inspection failures.
Effective labeling also improves communication between electricians, facility managers, and inspectors. A well-labeled panel shows professionalism and helps maintain consistent documentation across projects. For more details on labeling requirements and safety practices, visit Electrical Panel Labeling: Clear & Simple Compliance Guide (2025).
Key Elements of Effective Labeling
A strong labeling system depends on clarity, durability, and consistency. Labels must stay legible over time, even in heat, moisture, or chemical exposure. Using heat- and chemical-resistant materials ensures long-term performance in industrial settings.
Text should be easy to read, with high contrast between background and lettering. Many facilities use standard abbreviations such as A/C for air conditioner or WH for water heater to maintain uniformity.
Quality adhesive is critical. Poor adhesion can cause labels to peel or fade, leading to confusion or non-compliance. Choosing labels that meet NEC, OSHA, and NFPA standards helps maintain both safety and reliability.
When designing a labeling system, consistency across all panels and circuits prevents misinterpretation. Using a standardized format for all electrical panels supports quick recognition and smoother maintenance processes.
Types of Electrical Panels and Labeling Needs
Different panels require different labeling approaches. Residential panels often need simple, descriptive labels for circuits like lighting, outlets, and major appliances.
Commercial and industrial panels involve more complex systems, including motor controls, HVAC units, and high-voltage circuits. These panels benefit from durable materials and detailed labeling that includes load information and hazard warnings.
Control panels in manufacturing environments may require specialized identification for relays, switches, and automation components. Labels must withstand vibration and environmental stress.
Color coding and symbol use can further enhance clarity. For example, color coding and labeling best practices for industrial panels recommend consistent color schemes to indicate voltage levels or hazard types.
Each panel type demands careful planning to ensure that all labels remain clear, compliant, and easy to interpret throughout the system’s life.
Best Practices for Labeling Panels and Circuits
Clear electrical labeling improves safety, reduces downtime, and supports compliance with national codes. Using consistent formats, precise circuit identification, and durable materials helps technicians avoid electrical hazards and maintain accurate documentation.
Standard Labeling Formats and Methods
A consistent labeling format ensures that anyone working on an electrical panel can quickly identify circuits and components. Labels should include clear text, contrasting colors, and durable materials that resist heat, moisture, and chemicals.
Standard abbreviations such as A/C for air conditioner, WH for water heater, and GFCI for ground fault circuit interrupter make panels easier to read and maintain. A detailed list of common abbreviations can be found in the Electrical Panel Labeling Compliance Guide.
Printed labels are preferred over handwritten ones for clarity and longevity. Industrial-grade label printers produce legible text that meets professional standards. Some facilities also use engraved or metal photo labels for long-term durability.
Label placement matters. Each label should be positioned directly beside or above the corresponding breaker or switch. Panels with multiple rows of breakers benefit from a grid layout or circuit directory placed on the inside of the door.
Circuit Identification Strategies
Accurate circuit identification prevents confusion and helps isolate circuits safely during maintenance. Each breaker should correspond to a specific load, such as lighting, HVAC, or receptacles.

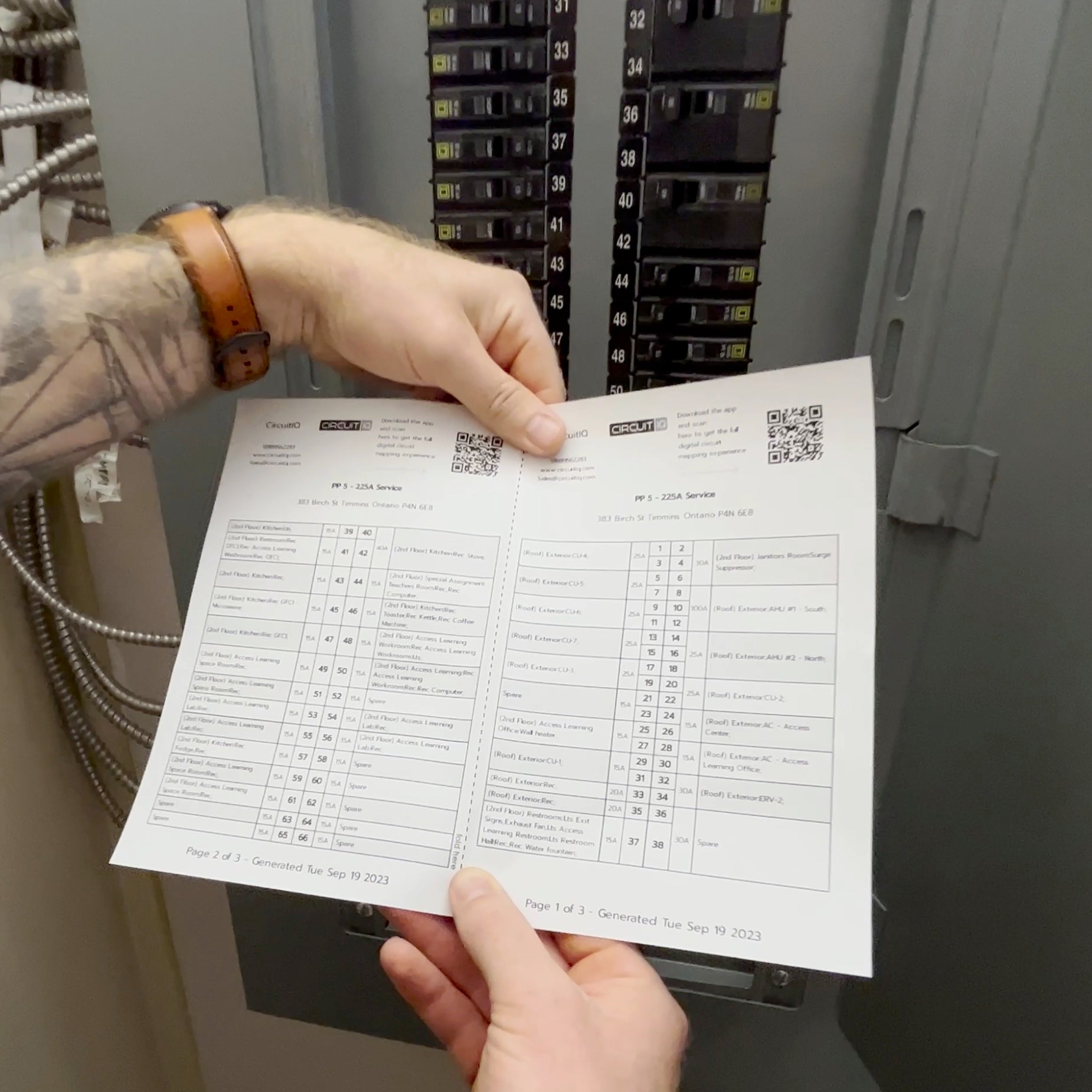

A panel schedule—a chart listing breaker numbers, circuit descriptions, and load locations—should be attached inside the panel door. Learn more about how to create one in this guide on labeling electrical equipment.
Technicians often use a numbering system that matches the panel directory. For example, breaker 1 may serve “Office Lights,” while breaker 2 powers “Server Room Outlets.” This systematic approach supports quick troubleshooting.
Color coding also helps. Using different colors for lighting, power, and mechanical circuits adds another layer of clarity. Consistent labeling across all panels in a building prevents misidentification and reduces the risk of electrical hazards.
Compliance with Electrical Codes
All electrical labeling must meet the requirements of the National Electrical Code (NEC), particularly Articles 110.22(A) and 408.4(A). These sections require each disconnecting means and circuit to be clearly identified.
Labels should remain legible and durable for the life of the equipment. Using high-quality materials that resist fading and peeling helps maintain compliance. The Electrical Panel Labeling Standards Guide explains how proper labeling supports OSHA and NFPA safety expectations.
Facilities should review labels during routine inspections or after any electrical system changes. Keeping documentation current ensures that maintenance staff always work with accurate information.
Compliance not only prevents fines but also enhances electrical safety by reducing the chance of accidental contact or misoperation during repairs.
Choosing the Right Labeling Tools and Materials
Reliable electrical panel labeling depends on using the correct printers, materials, and systems that match the work environment. The right tools improve efficiency, maintain compliance, and ensure labels stay legible over time.
Label Printers and Printing Solutions
A label printer designed for industrial use produces clear, durable text that resists fading and smudging. Electricians often use thermal transfer printers because they create labels that hold up against heat and moisture.
Portable printers are useful for fieldwork since they allow technicians to print on-site. Desktop models work better for larger projects that require high-volume printing.
When choosing a printer, users should look for features like fast print speed, high resolution, and software compatibility for easy data import. Some models, such as those highlighted in the best label makers for electrical panels, include built-in templates that align with standard panel layouts.
Selecting Durable Labels and Plastic Tags
Labels and plastic tags must withstand environmental stress. In industrial or outdoor settings, heat, dust, and chemicals can damage low-quality materials. Using laminated polyester or vinyl labels helps prevent peeling or fading.
A good labeling system includes self-adhesive labels for smooth surfaces and engraved plastic tags for rough or uneven panels. For example, high-quality electrical panel labels are designed to meet NEC, OSHA, and NFPA standards for safety and compliance.
When selecting materials, consider:
| Condition | Recommended Material | Benefit |
|---|---|---|
| High heat | Polyester or polyimide | Resists melting |
| Moisture | Vinyl | Prevents peeling |
| Heavy use | Rigid plastic tags | Long-lasting |
Digital vs. Physical Labeling Systems
A digital labeling system uses software to design and store label templates, making updates quick and consistent. This method works well for facilities that frequently modify panel layouts or need centralized control.
Physical labeling systems, such as printed adhesive labels or engraved tags, remain essential for on-site identification. They provide immediate visibility and do not rely on electronic access.
Many teams combine both. They manage label data digitally but print physical tags for installation. This hybrid approach balances flexibility with durability, keeping electrical panels organized and compliant with labeling standards.
Optimizing Workflow, Maintenance, and Troubleshooting
Clear electrical panel labeling improves maintenance efficiency, reduces troubleshooting time, and supports consistent documentation practices. It helps technicians identify circuits quickly, perform safe repairs, and maintain compliance with safety codes.
Streamlining Electrical Maintenance Activities
Accurate labeling allows maintenance teams to locate circuits and components without tracing wires manually. This saves time and limits system downtime. A well-organized panel directory lists each circuit’s function, load, and location, helping workers plan maintenance tasks safely and efficiently.
Facilities that follow standards like NEC Article 408.4 ensure each circuit is clearly identified and updated after any modification. Using durable, high-contrast labels prevents fading and confusion during inspections or repairs.
A simple table can help standardize labeling details:
| Label Element | Description | Example |
|---|---|---|
| Circuit ID | Unique number or code | CKT-12 |
| Function | Usage or connected load | Lighting – East Wing |
| Voltage | Circuit voltage rating | 120V |
| Date Updated | Last verification | 10/2025 |
Following these practices, as described in Optimize Your Electrical Workflow with Proper Labels, helps maintain a consistent and safe electrical maintenance routine.
Troubleshooting with Accurate Panel Labeling
When electrical faults occur, clear labeling allows technicians to isolate and repair circuits faster. Each breaker and conduit label should match the panel schedule to prevent confusion during troubleshooting.
In emergencies, accurate breaker identification supports quick power isolation, minimizing risk to personnel and equipment. Facilities that use color-coded or digitally documented labeling systems can cross-reference circuits more easily, reducing missteps during fault diagnosis.
According to Electrical Panel Labeling Standards: Easy Guide, precise labeling also reduces downtime and helps maintain compliance with industry safety requirements. This ensures that maintenance and troubleshooting activities remain efficient and reliable.
Training and Documentation for Long-Term Efficiency
Consistent labeling practices depend on proper training and clear documentation. Teams must understand how to read, update, and verify panel schedules and breaker directories. Regular audits keep labels accurate after system upgrades or reconfigurations.
Digital documentation tools allow electrical professionals to track updates and share information across teams. This minimizes errors and supports long-term maintenance planning.
Training programs that emphasize label standards, placement, and durability help maintain organized electrical equipment. As noted in Discover Electrical Labeling Tips for Contractors, structured labeling and documentation improve long-term efficiency and ensure safe, consistent electrical management.
Frequently Asked Questions
Clear labeling improves electrical safety, reduces downtime, and supports compliance with national standards. Using durable materials, accurate abbreviations, and organized layouts helps technicians identify circuits quickly and maintain efficient operations.
What are the best practices for labeling electrical panels to ensure safety and efficiency?
Technicians should use standardized abbreviations, legible text, and consistent placement. Each breaker or circuit should be clearly identified by its function. Following recognized labeling standards helps prevent confusion and electrical hazards.
How does an electrical panel labeling system contribute to workflow optimization?
A structured labeling system reduces time spent tracing circuits and troubleshooting issues. It improves communication between maintenance teams and ensures quick identification during repairs, as explained in this guide on optimizing electrical workflows.
Can you recommend durable labeling materials suitable for industrial electrical panels?
Industrial environments require labels that resist heat, moisture, and chemicals. High-quality adhesives and laminated coatings prevent peeling or fading. Durable panel labels designed for long-term use maintain legibility even in harsh conditions.
What are the regulatory requirements for electrical panel labeling?
Labeling must comply with NEC Articles 110.22(A) and 408.4(A), which require each disconnect or circuit to be identified by its purpose. OSHA and NFPA also outline labeling standards to ensure safety and reliability, as detailed in electrical labeling compliance updates.
How can automation be integrated into electrical panel labeling processes?
Automation tools can generate and print labels directly from digital circuit maps. This ensures accuracy and consistency across facilities. Some systems connect to building management software, allowing updates when circuits change.
What are the common mistakes to avoid when labeling electrical panels?
Common errors include using unclear abbreviations, poor-quality materials, or inconsistent placement. Failing to update labels after system changes can lead to confusion and safety risks. Regular reviews and adherence to labeling best practices help prevent these issues.
